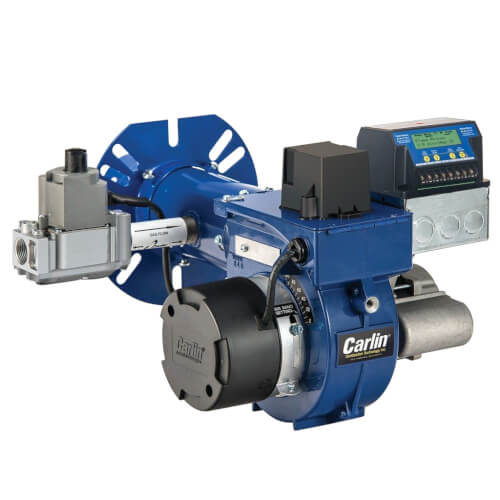

50,000-275,000 BTU EZ Gas Pro Conversion Burner w/ 14″ Air Tube
50,000 to 275,000 Btuh
Fuels: Natural Gas or Propane Gas
Maximum Supply Pressure: 14 inches w.c.
Minimum Supply Pressure: 5.0 inches w.c.
Manifold Pressure: 3.5 inches w.c.
Carlin 60200FR Microprocessor Control
4 sec. Trial for Ignition (TFI)
1.3 Sec. FFRT
Pre-purge and post-purge
Serviceman Reset Protection
Latch-up after three consecutive lockouts
Interrupted Duty Ignition
Recyle on Flame Failure
Power: 120 vac, 60Hz, 1-Phase
Current: Approximately 2.0 Amps
Limit Circuit Input: 120 vac, 60 Hz
Motor: 1/15 HP, 3450 RPM, 60 Hz
Motor Frame: 48 Frame, “M” Flange
Fuel Valve Power: 120 vac, 60 Hz
Ignition: Carlin Model 41800 Solid State Electronic Ignition
Ignition Voltage: 9,000 volts
